“The pulp is a big issue about a little tissue.” This quote is credited to early endodontic educator Dr. Sam Seltzer of Philadelphia.
Nothing has changed.
Restorative dentists have discovered that endodontics is one of the fastest ways to grow their practices, and, therefore, most dentists want to add more endodontic procedures to their schedules. However, as dentists, we are almost all built alike. We also want to do a better job. Our No. 1 desired outcome in clinical dentistry is predictability. I know this because, after more than 30 years of clinical teaching, the most frequent question that students ask me is, “Is it predictable?” And the most frequent question that I ask students is, “Is it predictable?” Why do we ask this question? Because our No. 1 focus is our patients. We want to know that we are doing our best for them. So, consequently, dentists who perform endodontics in their practices always want to know what the endodontists are doing. They want to compare their best with the level of care that the endodontic specialists are providing. They often bring endodontists their final radiographic images and ask, “What do you think?”
Until 3-D endodontic imaging, the only comparison for the restorative dentist’s endodontic result vs the endodontist’s result was a 2-D image. At this moment, a facial final image quality comparison is still the fastest way for a dentist to evaluate how he or she is doing with his or her treatment. The purpose of this article is to offer the restorative dentist a quick radiographic reference guide of radicular endodontic preparation outline and obturation forms. Of course, this comparison does not include details such as access design, the type of 3-D cleaning, or obturation technique.
This article represents a quick visual reference guide as a starting point for pretreatment and posttreatment evaluations. While none of the selected respected clinicians used precisely the same treatment protocol (ie, instruments and technology), this does not matter. The endodontists who were chosen to be showcased in this article are highly trained and skilled. Any of them could prepare the root canal system’s final radicular shapes with literally any modern endodontic tools. They will likely have specific preferences, and most will feel quite strongly about their chosen tools and techniques because, for them, their protocols provide predictability, safety, and ease of delivery. All of us have different skill levels, a unique mix of patients, varied office infrastructure, and a different staff alignment, and we are all at different stages of our endodontic lives, requiring different interests in endodontic procedures. All of these variables make it impossible and inappropriate to actually compare my shape with your shape, but let the conversation begin.
How do endodontists give the restorative dentist helpful and honest answers? To answer this question, we have to look at the back story: the Endodontic Triad and “The Look” of the dentist’s final digital radiograph.
Is the Endodontic Triad Dead or Alive?
The purpose of endodontics is to prevent or heal lesions of endodontic origin. The rationale of endodontics is that any endodontically diseased tooth can be saved if its root canal system can be cleaned and sealed, either non-surgically or surgically; if the periodontal condition is healthy or can be made so; and if the tooth is restorable. Recognizing the purpose of endodontics, Schilder1,2 was the first to offer clinical mechanical radicular objectives to make the rationale of endodontics predictable. Previously, the mechanical objectives were essentially described as “instrument and fill.” Schilder consolidated the 5 mechanical objectives into a simple intentional protocol, which most dentists refer to today as cleaning and shaping (more recently, with the acceptance of the NiTi revolution, some endodontists prefer shaping and cleaning). It should be noted that many earlier “instrumented” canals were neither cleaned nor shaped, based upon in vitro examination of extracted endodontic failures.3
Schilder’s 5 mechanical objectives evolved into the Endodontic Triad: clean, shape, and pack.4,5 These time-tested goals remain with the same validity; only the methods have changed. Endodontics has gotten better, safer, and easier, all the while resulting in an increased predictability for the dentist and the patient. Endodontic biology is part of any medical biology. The rules of Mother Nature remain the same: Eliminate the source of a disease and the disease is gone! The symptoms of the disease also resolve, as symptoms are not sustainable without a cause. Meanwhile, the ravages of a healed disease may remain.
While some authors would suggest the Endodontic Triad is no longer valid, the reader should note that, in these recent writings, the clinician(s) still (1) make an endodontic access followed by one or more endodontic files; (2) perform some form of irrigation cleaning; and (3) fill the empty anatomy with a sealing material. The only real difference between now vs the past is newer technologies, such as the microscope, for better vision; digital radiographs, for enlarging images for better detail; 3-D CBCT to evaluate the root canal system in 3 dimensions vs 2 dimensions; NiTi files, for increased shaping control, confidence, and consistency; new hopeful technologies to enhance root canal system cleaning; and, finally, improved obturation techniques that better enable filling material to flow into all foramina as well as complex internal anatomy.
In order for a dentist to better understand the desired preparation silhouette or outline form, it is worth revisiting Schilder’s original 5 mechanical objectives for a brief review. Otherwise, how can the endodontist answer the dentist’s question: “How am I doing?”
Schilder’s 5 Mechanical Objectives
Mechanical objective No. 4 refers to preserving the position of the original foramina. No. 5 refers to the goal of cleaning to the radiographic terminus in order to stay patent while shaping to, and not intentionally, beyond the physiologic terminus. It is also important to note all foramina are asymmetric to varying degrees. Therefore, if a foramen were determined to be a size No. 20, for example, that diameter is the minimal diameter. The oval dimension (size) may be quite different, such as, for example, a size No. 60 or greater! This is the reason for fully understanding mechanical objective No. 5, which suggests that the funnel shape is, more often than not, an oval or asymmetric apical shape. This knowledge facilitates obturation since the clinician is asking for a round cone of gutta-percha to fit into a nonround foramen, and it therefore must be distorted to minimize the gutta-percha/dentin interface.
Newer obturation materials are offering the promise that the gutta-percha cone serves only as a plunger to press nonresorbable material into the body of the root canal system, including the foramina. We just have to wait 5 years to be sure that these newer protocols will deliver what is being claimed.
“The Look”: Dead or Alive?
“The Look” is far from simply a pretty image of a final radiograph that has visible foramina sealed. Instead, what “The Look” has referred to in modern endodontics is the radiographic achievement of the 5 mechanical objectives for predictable endodontics. That’s it! Because, radiographically, “The Look” often reflects a replication of Mother Nature’s complex root canal system’s unique complexities, there was, and is, an element of pride and satisfaction for the clinician when the final image reflects this complex and often unpredictable anatomy. Endodontic clinicians often discover the anatomy when the root canal system is packed. Undiscovered anatomy becomes discovered through the hydraulics of vertical compaction plunger effect! I call this the endodontic seal.
Replicating Mother Nature’s original anatomy has an element of beauty to it, but, more importantly, it validates or proves that the dentist has been there physically through finding, following, and finishing each canal within the root canal system.
“The Look” has evolved in recent years with the advent of previously mentioned new technologies that have literally turned the lights on for the endodontic clinician (Fig. 1).
The evolution of endodontics’ “The Look.” Different strokes for different folks at different times. I asked 8 clinicians to submit one or 2 pretreatment and post-treatment endodontic radiographs that represent their present quality control levels of care based on their patients’ pre- and post-treatment radiographic images. I have also included my own examples. These radiographic templates (presented in alphabetical order, except for my own) enable restorative dentists to compare their results with leading endodontists. Dentists always ask me, “How am I doing?” Now they can at least answer their own questions by comparing their endodontic finish radiographs with the current “Look” of the endodontists. You can grade yourself using the following simple 30-point scale. Critical elements to consider when comparing your radiographs with theirs should be (1) smooth and appropriately sized preparations, based on the pretreatment and post-treatment images (10 points); (2) the prepared radicular outline form preparation shapes should follow the shape/flow of the original canal itself (10 points); and (3) the obturation should be a solid obturation of the root canal system from orifice to physiologic constriction (10 points). A total 30 possible points!

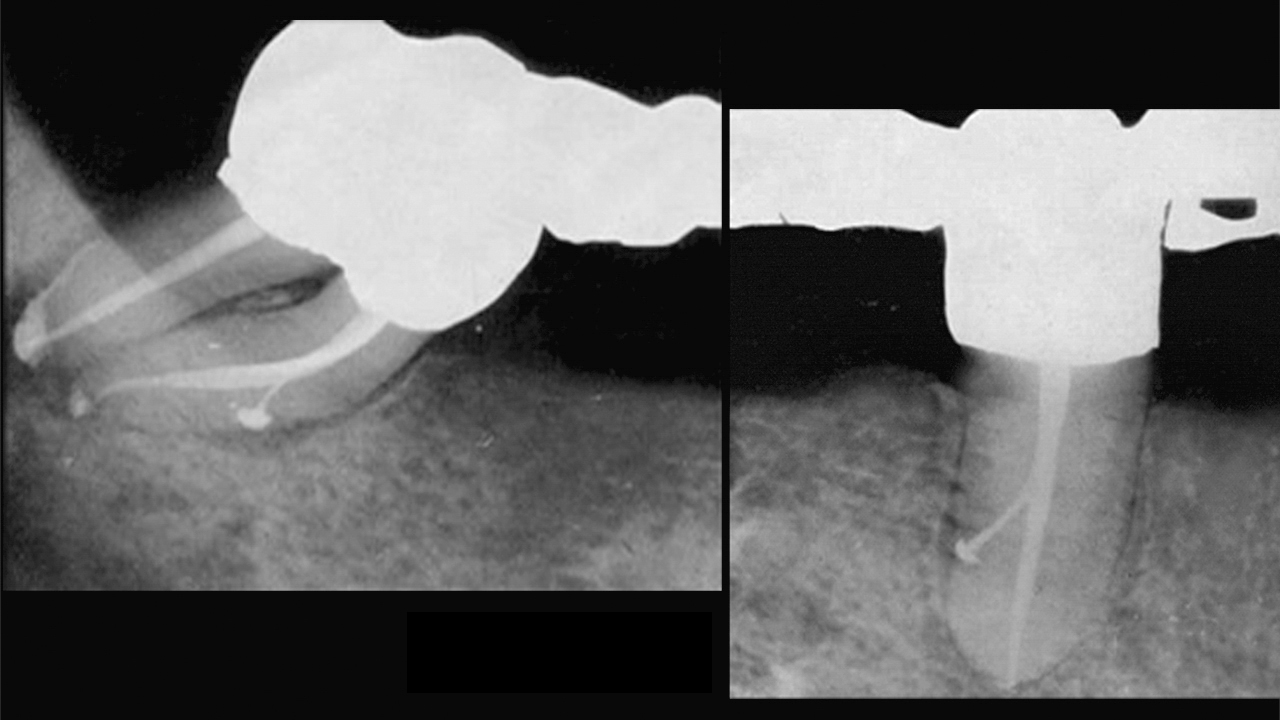

A 1950’s silver cone treatment failing, as well as a lesion of endodontic origin one tooth distal. While metal was pressed into under-shaped systems with under-disinfected anatomy, many of these (crudely performed by today’s standards) silver cone treatments had a sustainable success rate, especially when coronal leakage was not present due to good restorative efforts by the dentist.
Cover of Dr. John Ingle’s original endodontic text published in 1965. Students used to affectionally call the textbook “Old Yeller.” When I was a student, Ingle was dean of the endodontic department at the University of Washington dental school. Ingle was a descendent of Davey Crockett, which explains his willingness to trailblaze many new standards in endodontics. For many years, students wanted to be just like John. I was one of them.
In this golden book of endodontics, Dr. John Ingle asked the then young and up-and-coming endodontic teacher at the Boston University School of Graduate Endodontics to submit a patient case. His name was Dr. Herbert Schilder. Pictured is Schilder’s submitted endodontic result. Note that the appropriate shapes speak for themselves: no rotary, microscope, 3-D CBCT, digital imaging, apex locators, EndoActivator (Dentsply Sirona), Gentlewave (Sonendo), or even sodium hypochlorite! Schilder only had principles, files, reamers, and a dedication to the minimally invasive preparations. Note Schilder’s 2-in-a-row treatment result! The bridge abutments both needed endodontic treatment. Schilder taught his students that if you could do it once, you could do it twice, and so on.
Clinical endodontics by Dr. L. Stephen Buchanan (Santa Barbara, Calif). He has always mastered the skill of having one foot in the past (timeless principles) and one foot in the future.
Clinical endodontics by Dr. Thomas McClammy (Scottsdale, Ariz). Ever since I have known him, he is full of passion and purpose. He continues to discover how transformational technologies in 3-D cleaning directly affect his shaping and obturation techniques.

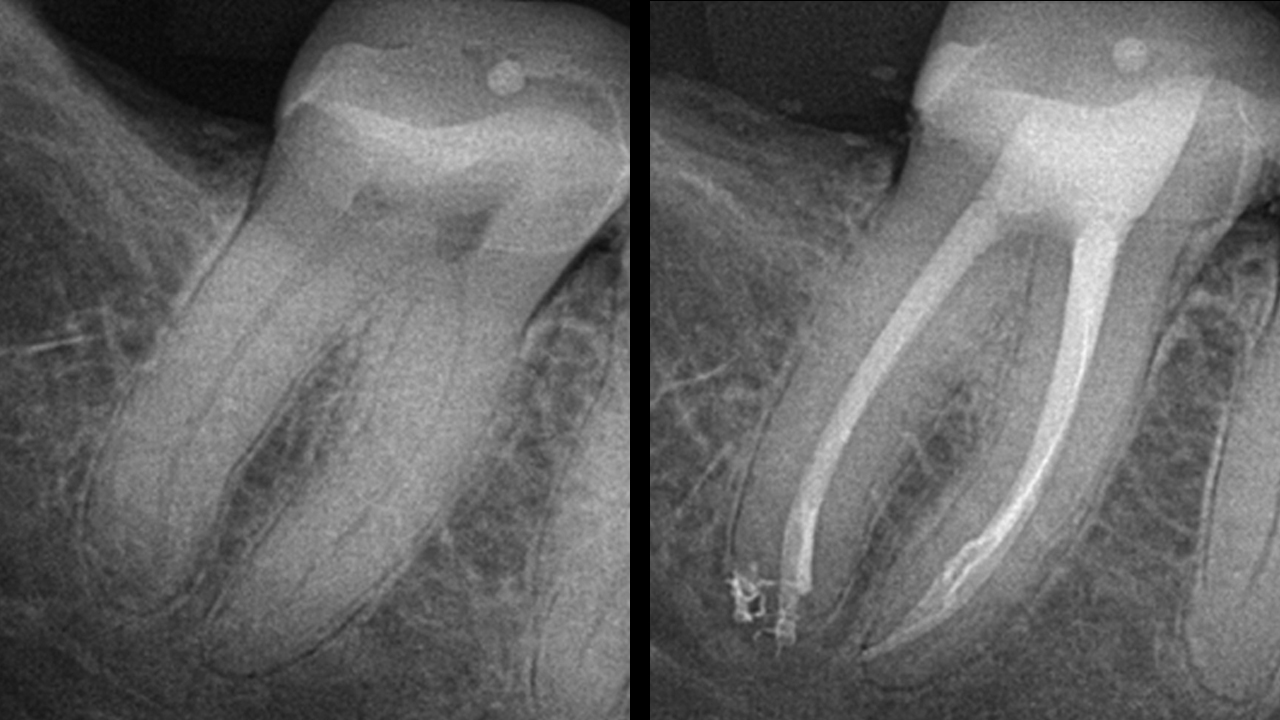

Clinical endodontics by Dr. Terry Pannkuk (Santa Barbara, Calif). Terry’s shapes are a perfect example that “The Look” must be dictated by the original “Nature’s Look.” In both patients, Terry, who is also a master innovator, demonstrates appropriate shapes for the roots in which they live; 1H is a simple labyrinth
Clinical endodontics by Dr. Terry Pannkuk (Santa Barbara, Calif). Terry’s shapes are a perfect example that “The Look” must be dictated by the original “Nature’s Look.” In both patients, Terry, who is also a master innovator, demonstrates appropriate shapes for the roots in which they live; 1I is a complex labyrinth,
Clinical endodontics by Dr. Reid Pullen (Brea, Calif) shows two elegant results, both heading down the road of predictable healing. Reid understands that different treatment technologies are case specific
Clinical endodontics by Dr. Clifford J. Ruddle (Santa Barbara, Calif). He is the quintessential endodontic teacher. Every endodontic clinician has leaned valuable skills from him. He has made us better.

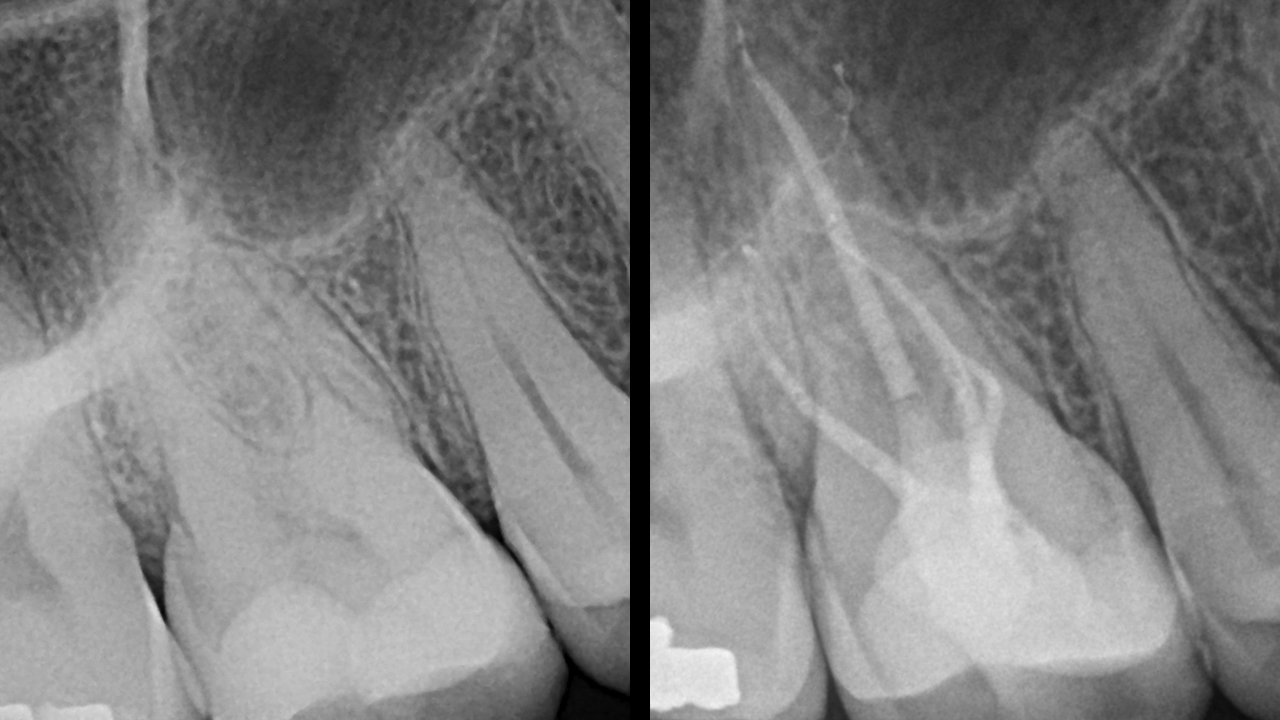

Clinical endodontics by Dr. Wyatt Simons (San Clemente, Calif). Minimally invasive shapes for a delicately shaped natural root canal system. Wyatt is one of the young pioneers in endodontics and always asking “How can I make this easier and more predictable?”
Clinical endodontics by Dr. Jason West (Tacoma, Wash). Jason is confident about his endodontic results because he has mastered preparing endodontic shapes that are appropriate for different roots. The trickier they are, the more fun for him.
Clinical endodontics by Dr. Jordan West (Tacoma, Wash). He deeply cares about his patient, the result, and the pride of a job well done. When patients are treated by Jordan, they receive his best.

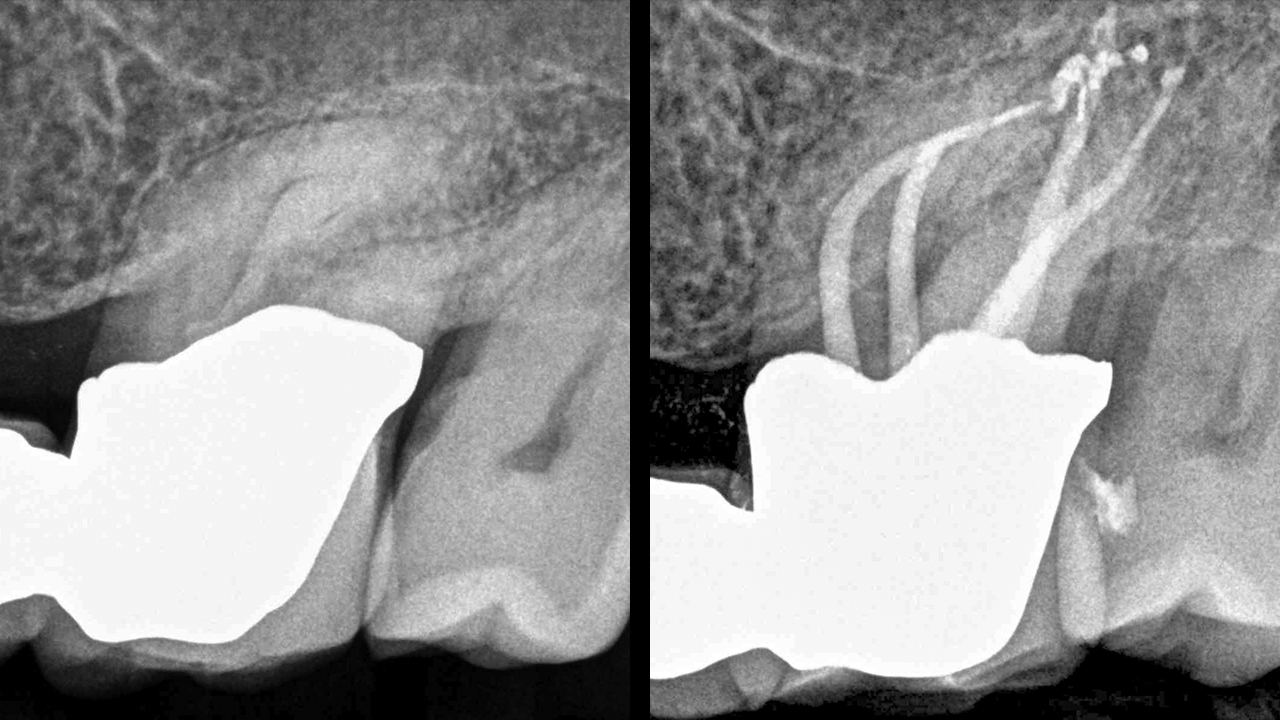

Clinical endodontics by Dr. John West (Tacoma, Wash). The “appropriate” Look has the same features regardless of anteriors, premolars, or molars.
“Appropriate”: It’s Role in Minimally Invasive Endodontics
Minimally invasive shapes are not new. (Fig. 1c). However, in achieving “The Look,” endodontists are not in full agreement about one characteristic, and that is the size of the clinician’s prepared funnel: how wide it is and how tapered it is. The current trend in endodontics is for narrower shapes. Of course, all dentists and endodontists alike aspire to the concept of minimally invasive endodontics from access to apex. The only difference is really the size of the root with which one begins. It is more accurate for me to refer to minimally appropriate (Fig. 2). The guideline is to “connect the dots” from foramen to access orifice. Nature makes root canals anywhere from one-fifth to one-third of the width of the root as it enters the canal orifice. This should also be the clinician’s goal. Then, of course, root canals experience calcific degeneration to varying degrees with age. Some may even appear to fully calcify, but Mother Nature does not do a root canal treatment, and, in fact, when calcific degeneration or calcific metamorphosis does occur, it occurs in a crown-down direction. The point here is that, if the clinician’s preparation is no wider than onefifth to one-third of the width of the root (equivalent to Mother Nature’s natural state), sufficient tooth structure will remain to sustain the tooth for a lifetime, just like Mother Nature intended (Fig. 2). The pericervical dentin is protected, and the ferrule must be preserved.

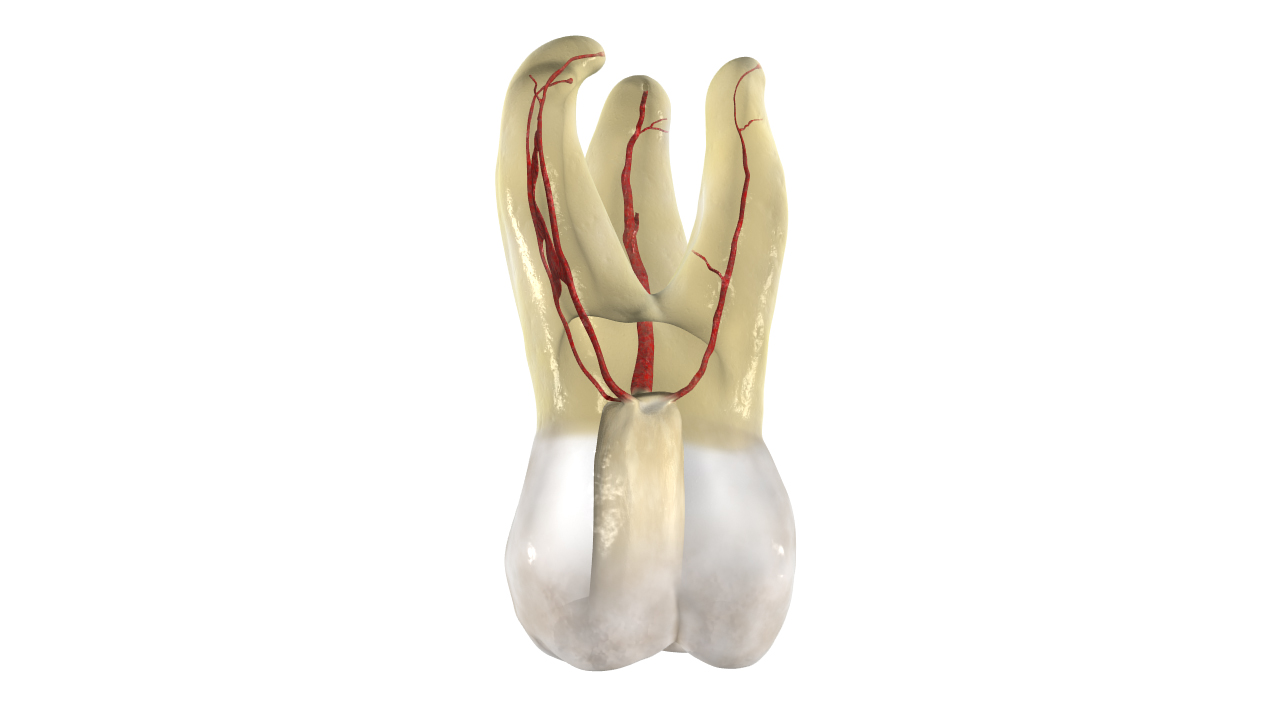

. Schematic of typical maxillary first molar root canal system prior to shaping. (Graphic Courtesy of Advanced Endodontics, Santa Barbara, Calif.)

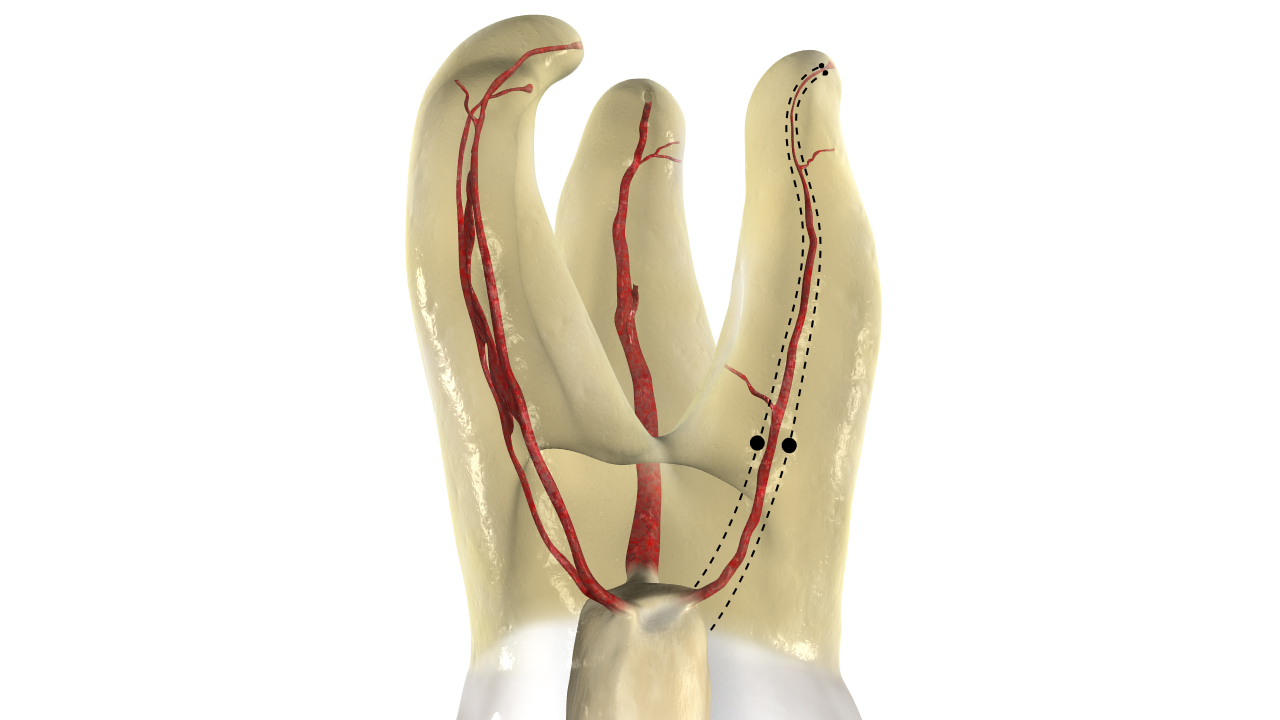

The dots represent minimal apical physiologic dimension of the DB root
The dots indicate an appropriate diameter of radicular preparation approaching the canal orifice, thus preserving pericervical dentin in the mesial-distal direction as well as the precious ferrule itself.
Proper radicular preparations connect the dots from minimally appropriate apical width to minimally appropriate coronal width.
The DB conefit proves the funnel shape and defines the canal as ready for 3-D obturation. Resistance form has been created throughout the 3-D canal preparation surface from apex to orifice.
A clinical example of 3 successful conefits to be easily followed by predictable 3-D obturation.
Indeed, “The Look” has radiographic aesthetics, but, more importantly, it serves as a marker for biologic success. Certainly, a 2-D image does not tell the whole story when a restorative dentist asks an endodontist, “Is this a good result?” The vertical extent, the shape of the radicular preparation, the density of the obturation, and the quality of the cleaning of vital or nonvital pulp and bacteria, are all unknown variables. The greater variables are perhaps none of these, since the greatest variables of all are the host and host resistance to endodontic disease and the capacity for endodontic success. The threshold of the patient’s required treatment thoroughness to achieve success is unknown. For example, an endodontic obturation halfway down the canal may be successful, while one filled with multiple lateral canals does not. Why? In endodontics, I have estimated thousands of chances each day to make mistakes or successes. Endodontics are truly in the clinician’s hands.
In summary, the final radiograph gives us a glance into reality and suggests our level of attention to detail. And finally, now the restorative dentist can compare his or her final result with the endodontist’s. Michelangelo said it best: “Trifles are perfection, and perfection is no trifle.”
What is your “Look?”
